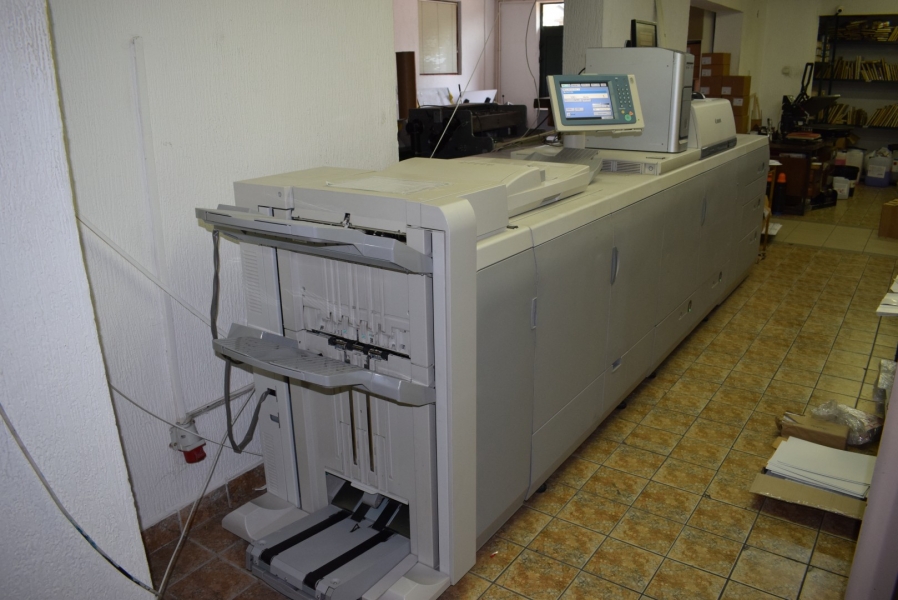

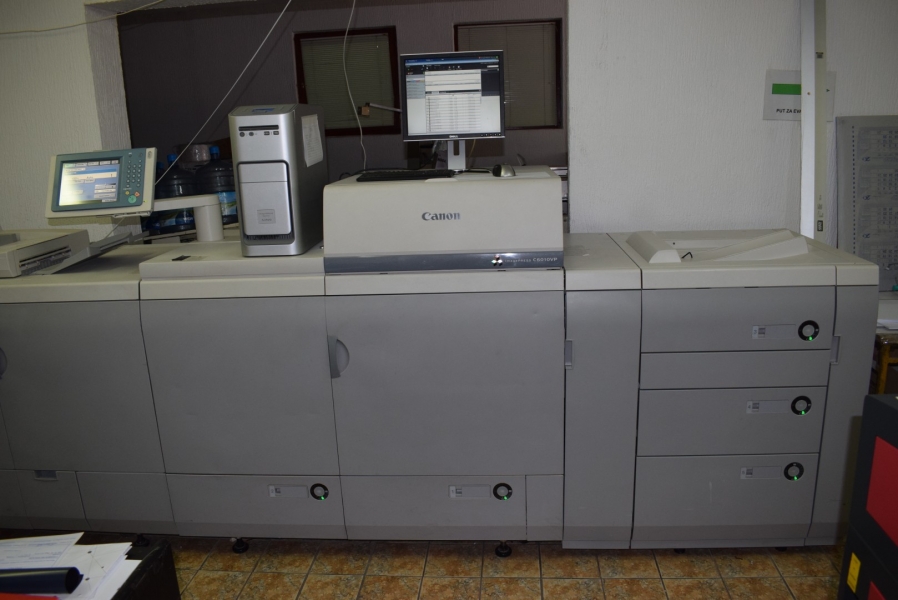

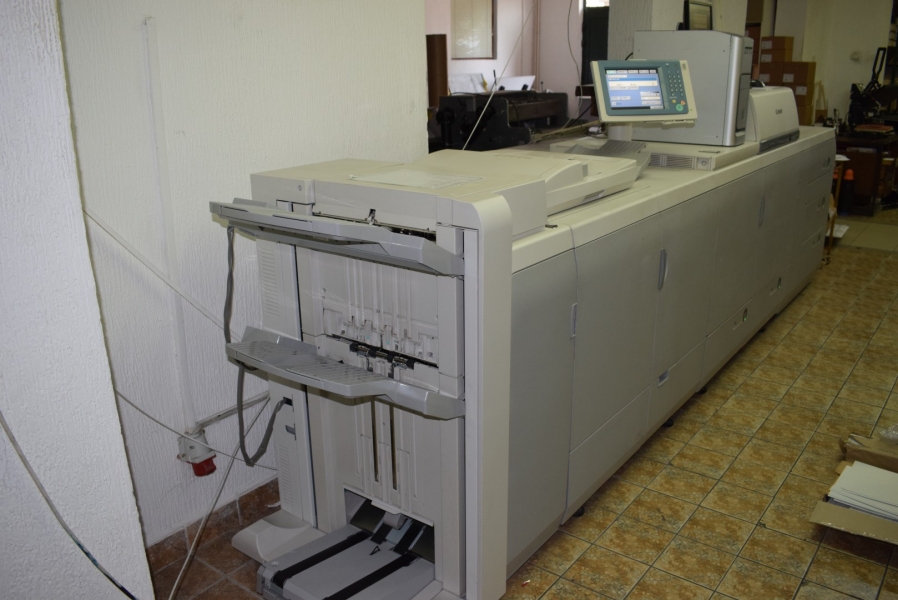

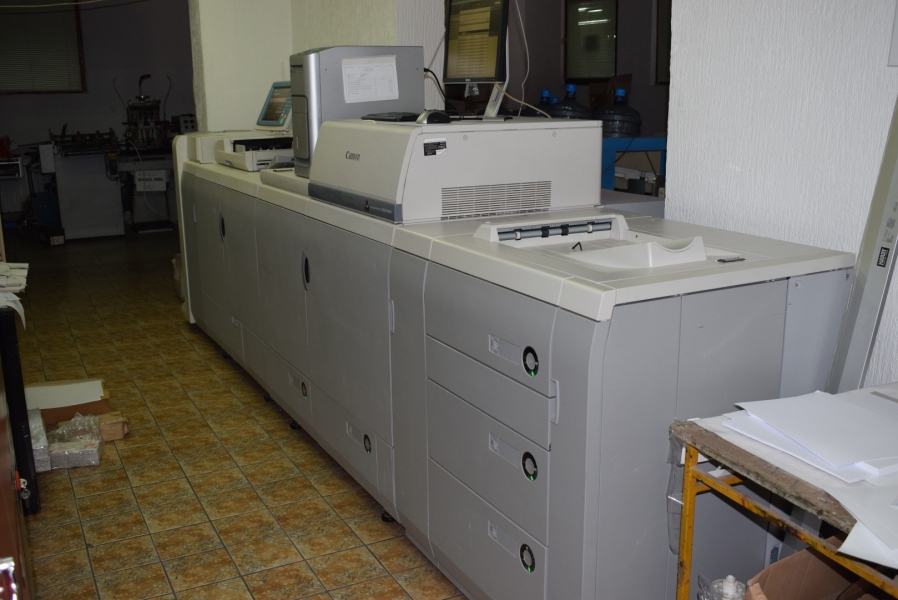

Digital printer

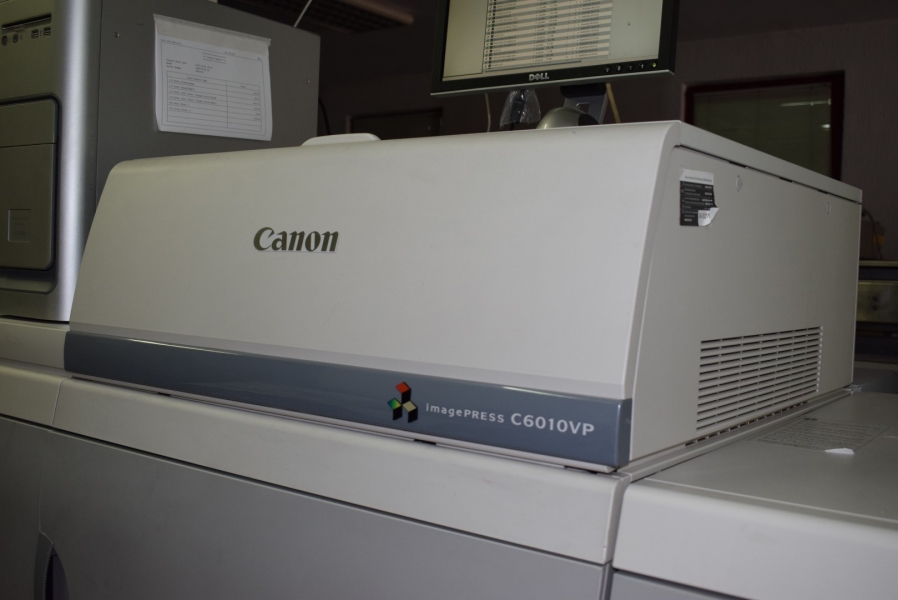

Type: Image press C6010VP;

Resolution: 1200dpi x 1200dpi, 256 gradations;

Productivity :iPR C6010VP Weight (gsm) Simplex (ppm) A4 60 to 325 61.7 A3 60 to 209 33.0 210 to 325 30.8 SRA3 60 to 209 31.0 210 to 325 28.8 13”x19” 60 to 209 28.8 210 to 325 26.8;

Registration tolerance: +/- 0.5 mm;

Paper Sizes: A5R*, A4, A4R, A3, SRA3 (320 x 450mm), 13” x 19” (330.2 x 482.6mm) Free size 182 x 182mm to 330.2 x 487.7mm;

Paper weight:  60 to 325 gsm;

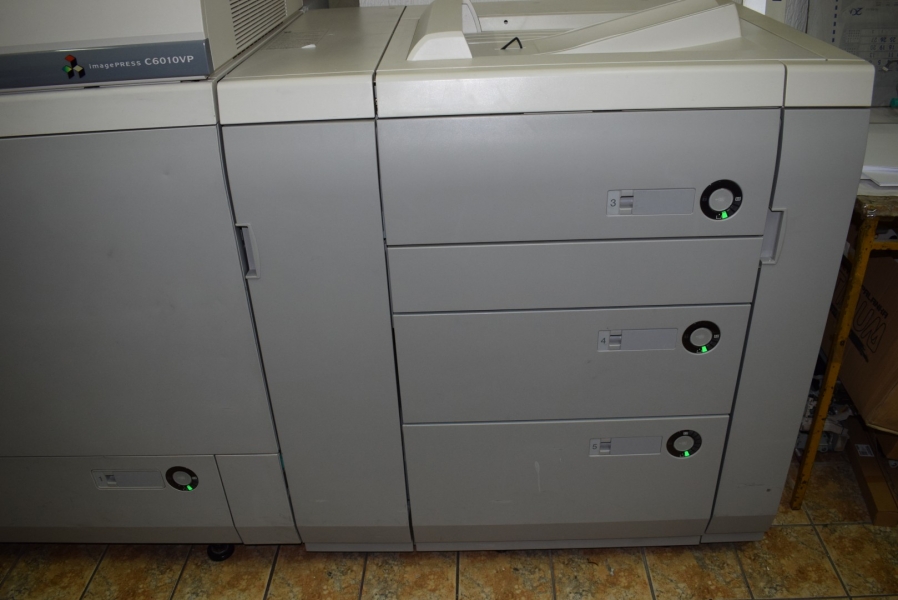

Paper capacity: Standard deck: 1,000 sheets x2 drawer (80 gsm);

Total paper feeding capacity: 10,000 sheets max;

Total paper finishing capacity: 17,000 sheets max;

Memory: 1.5GB Hard Disk Drive 80GB x 2;

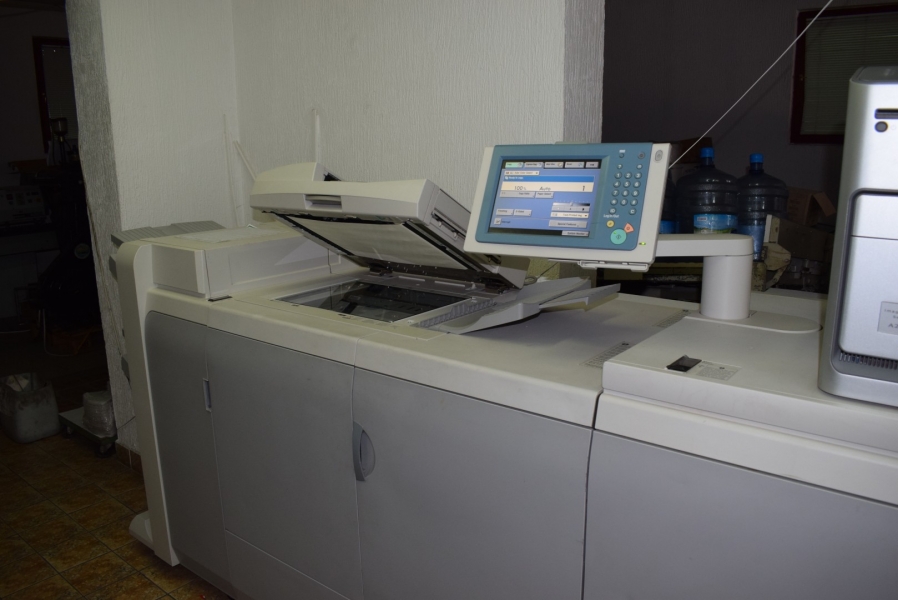

Display: 10.4” TFT touchscreen Interface;

Ethernet: (100Base-TX/10Base-T);

Dimensions (W x D x H): 2586 x 1152 x 1040mm (excluding upright panel);

Weight: 1,200kg (including Color Image Reader);

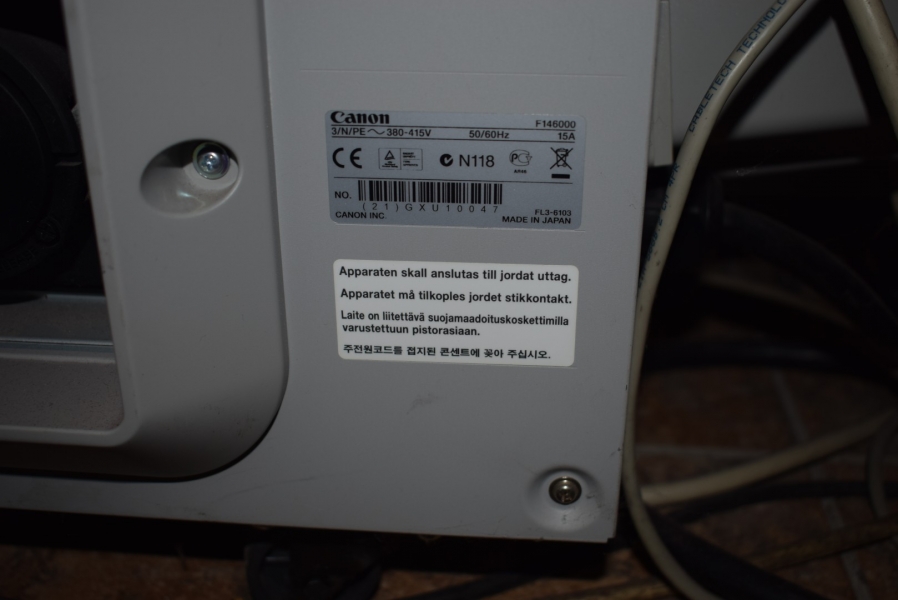

Power Supply: 400V (3-phase 5-wires), 32A Power Consumption 8.5kW max. (6010VP);

USB2.0 Network Protocols TCP/IP* (LPD/Port9100/WSD/IPP/IPPS/SMB/FTP), IPX/SPX(NDS,Bindery), AppleTalk *IPv4/IPv6 support;

PRINT SPECIFICATIONS:

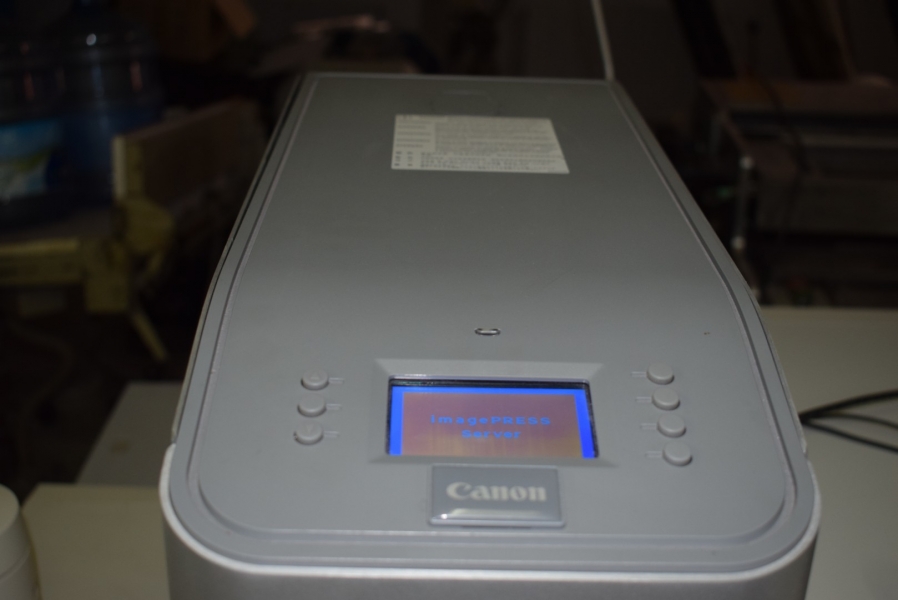

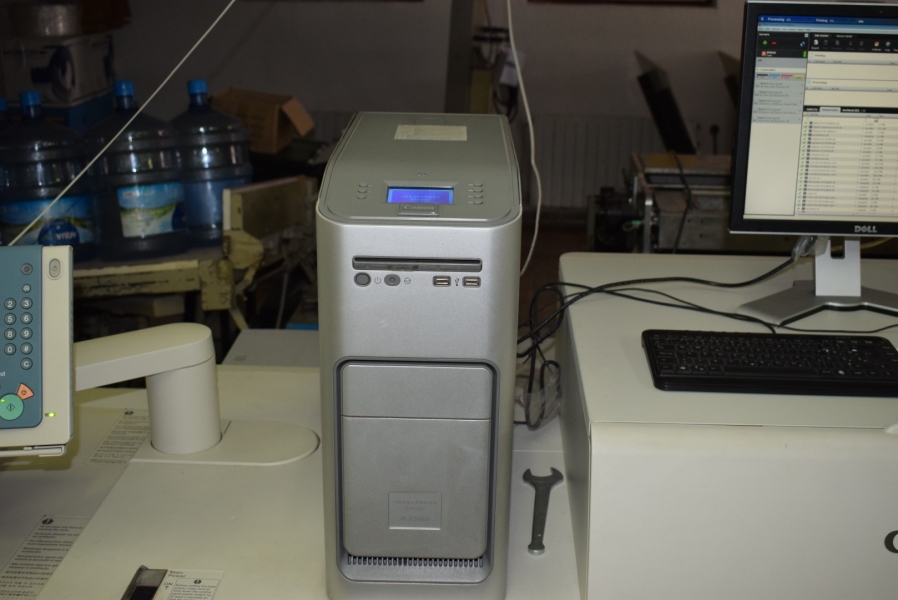

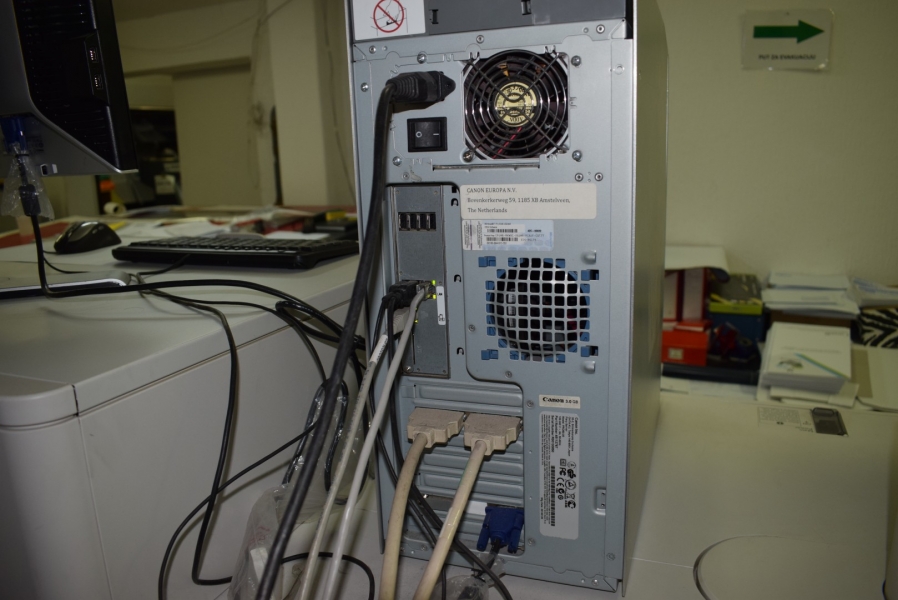

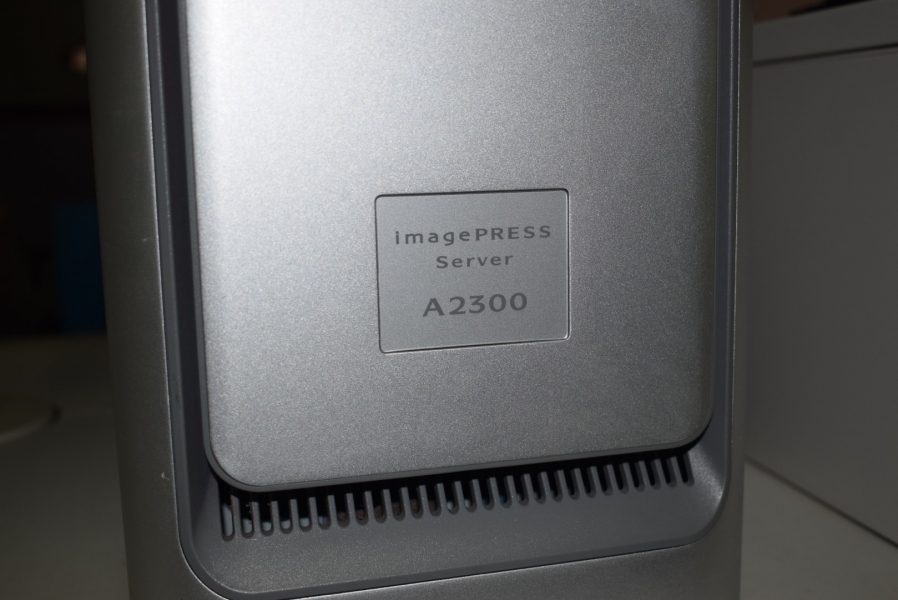

Name imagePRESS Server A3200/A2200;

Resolution: 1200dpi x 1200dpi (Text only), 600dpi x 600dpi;

Memory A3200: 4GB Hard Disk;

A3200: 250GB x 1 ,500GB x 2 ;

CPU A3200: Quad Core Xeon X5560 2.8GHz, 6.40GT/s QPI X 2 packages, 1333Mhz FSB, 12MB Cache Network Protocol TCP/IP (LPD/Port9100/IPP/SMB/FTP) *2, ATP/ DDP(AppleTalkPower Consumption 8.5kW max. (6010VP) Dimensions (W x D x H) 2,586 x 1,152 x 1,040mm (excluding upright panel) Weight 1,200kg (including Color Image Reader)
