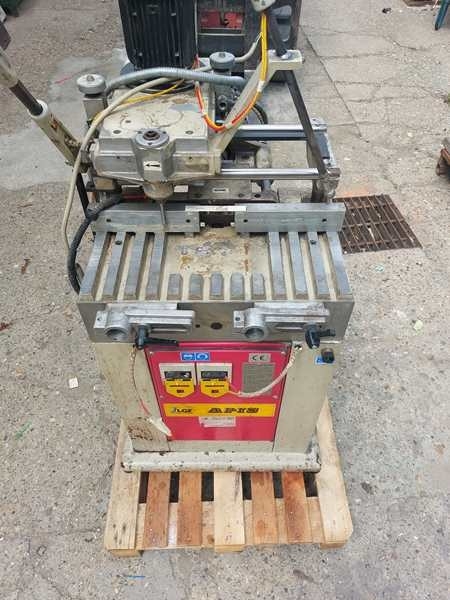

1997 LGF Pantograph

Type: Apis;

Serial number: 172;

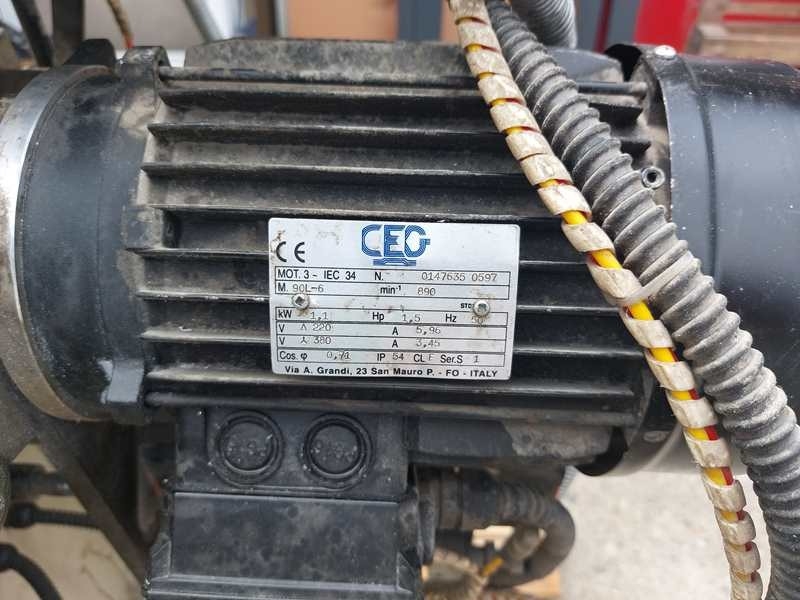

Engine type: 3 –IEC 34;

Model: 90L-6;

Engine power: 1.1 kW;

Spindle revolution: 14.000/min;

Working pressure: 7 bar;

Working capacity :;

VERTICAL HEAD:;

Vertical stroke: 110 mm;

Longitudinal stroke: 220 mm;

Transversal stroke: 115 mm;

HORIZONTAL BORING HEAD:;

Router bits interaxis: 22mm;

Horizontal bits stroke: 50 mm;

Vertical bits stroke: 6-80 mm;

Weight: 146 kg;

Overall dimensions: 770 x 680 x 150 mm;
