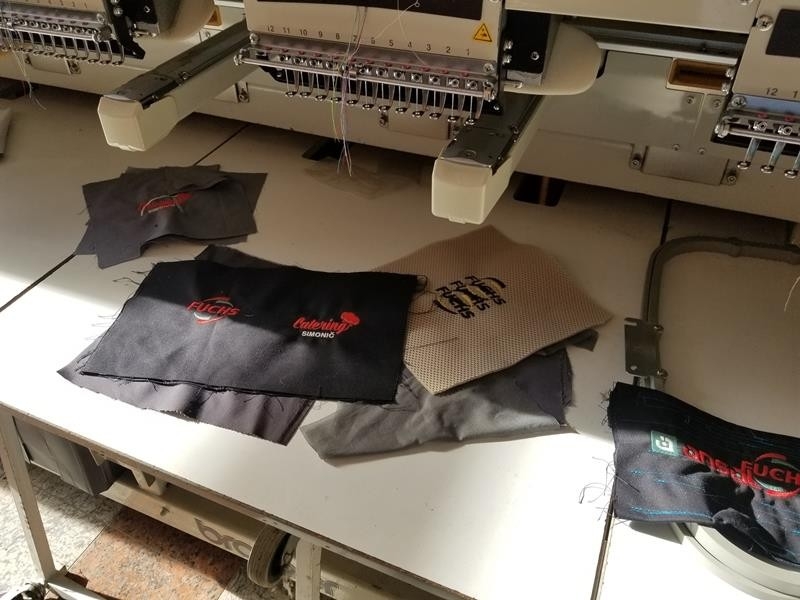

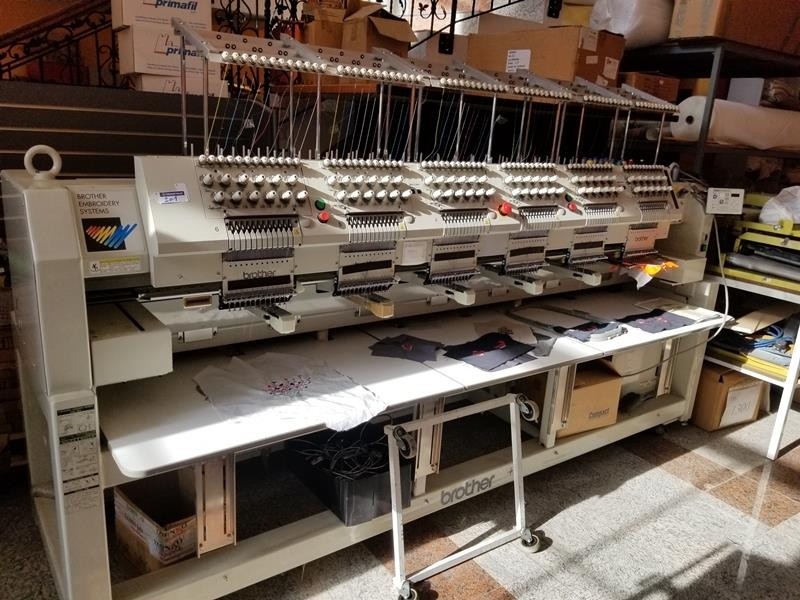

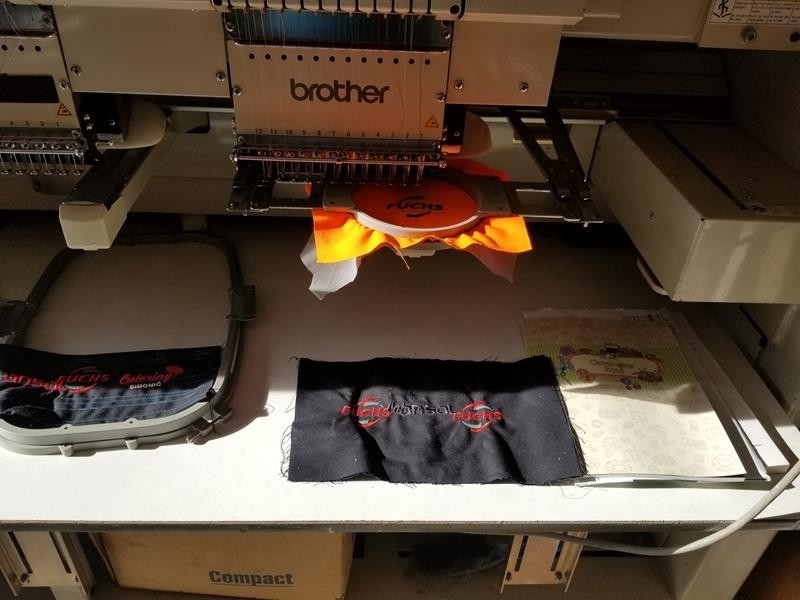

Embroidery machine

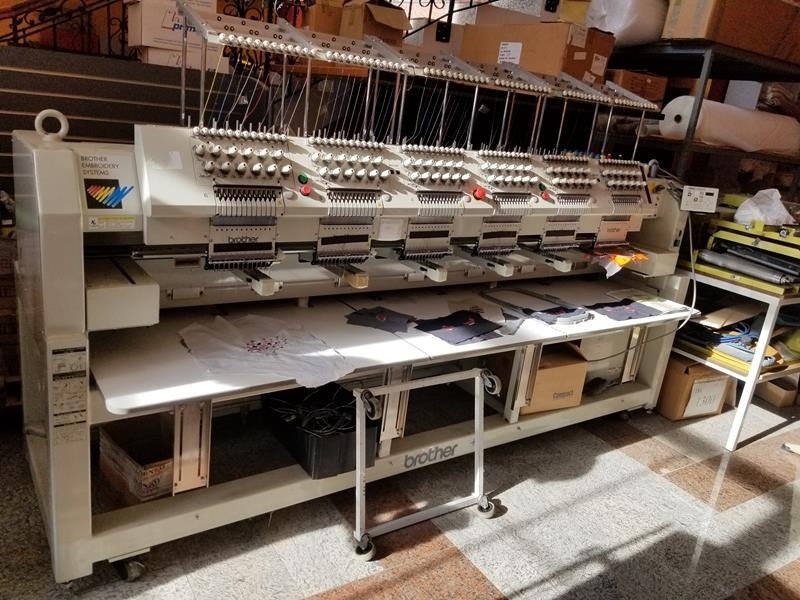

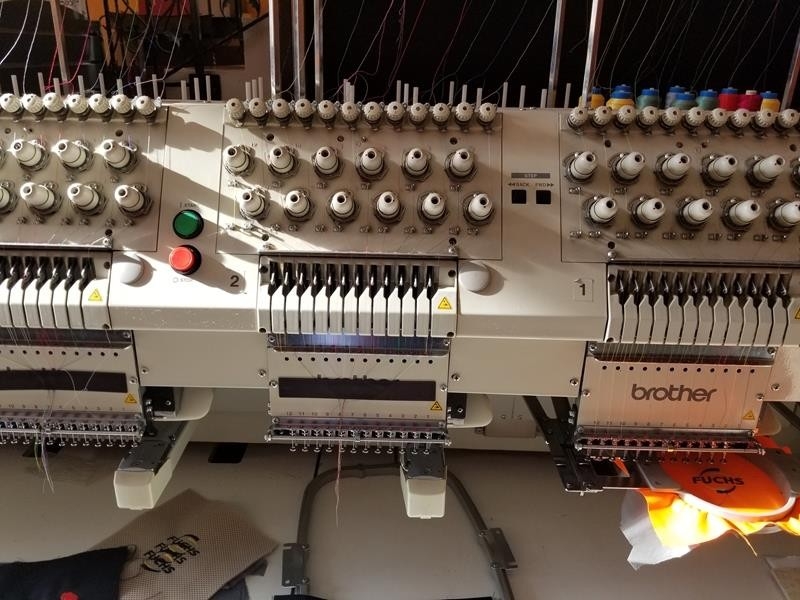

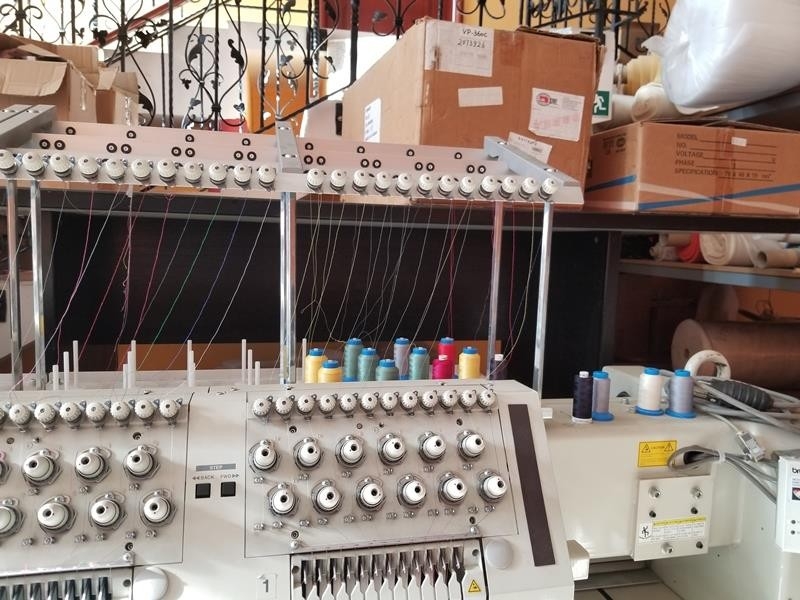

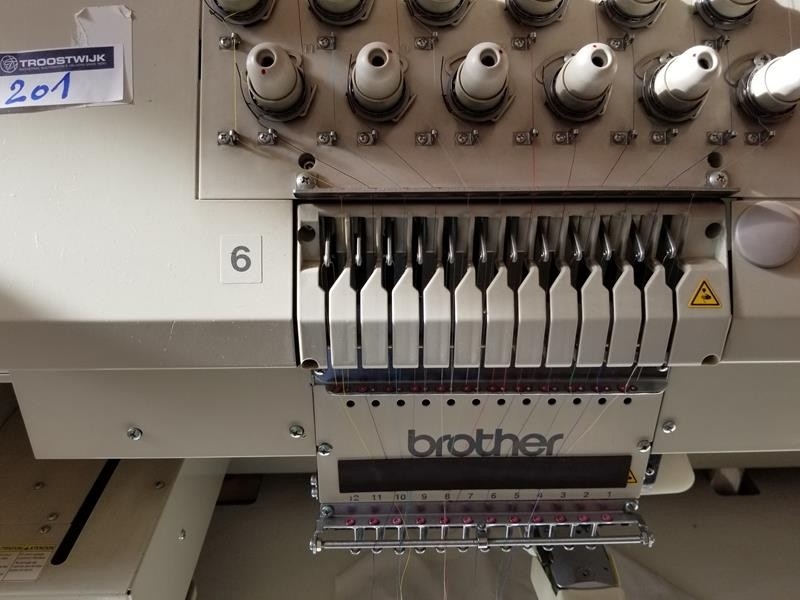

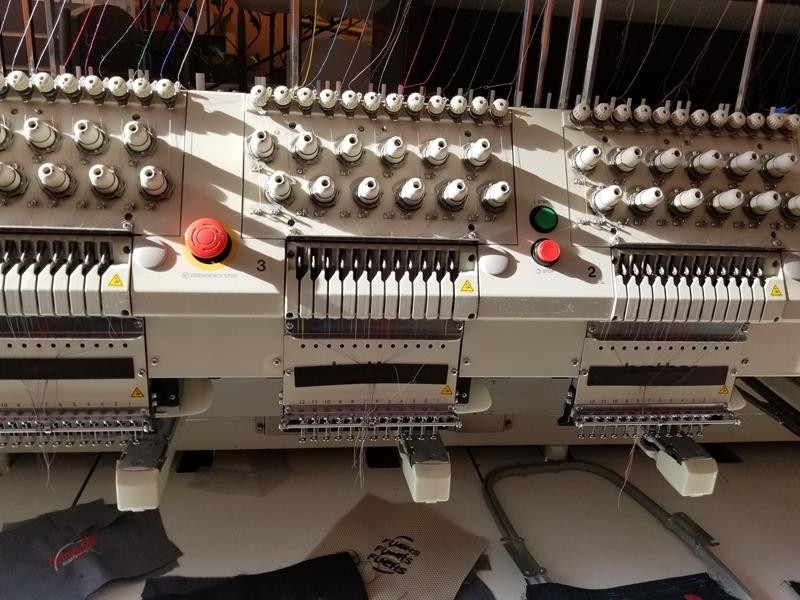

Machine used: 12 needle six-head embrodery machine;

Application : Pattern embroidery;

Sewing speed: Maximum 100rpm;

Distance between heafs: 360 mm;

Maximum feed range: 450 x 360 mm;

                                       95 x 360 mm with cap frame;

Sewing area: 450 x 360 mm with sash frame;

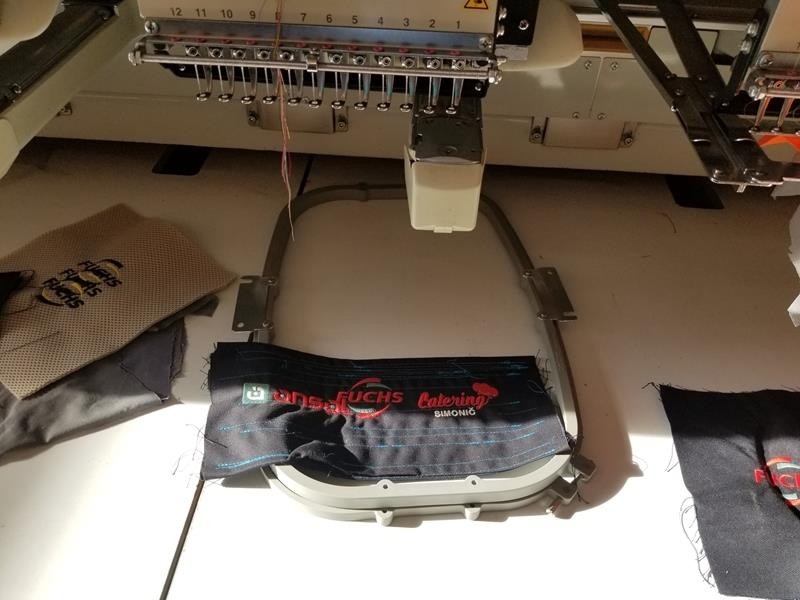

                        430 x 300 mm with maximum-size tubular square hoop/flat hoop;

                        85 x 360 mm with cap frame;

Feed system: by timing belt and stepping motor drive;

Stitch length: 0,1 ~ 12,7 mm;

Storage medium: 3.5 floppy disk;

Thread trimming: Automatic thread trimmer;

Thread breakage detect: Upper and lower thread breakage detector;

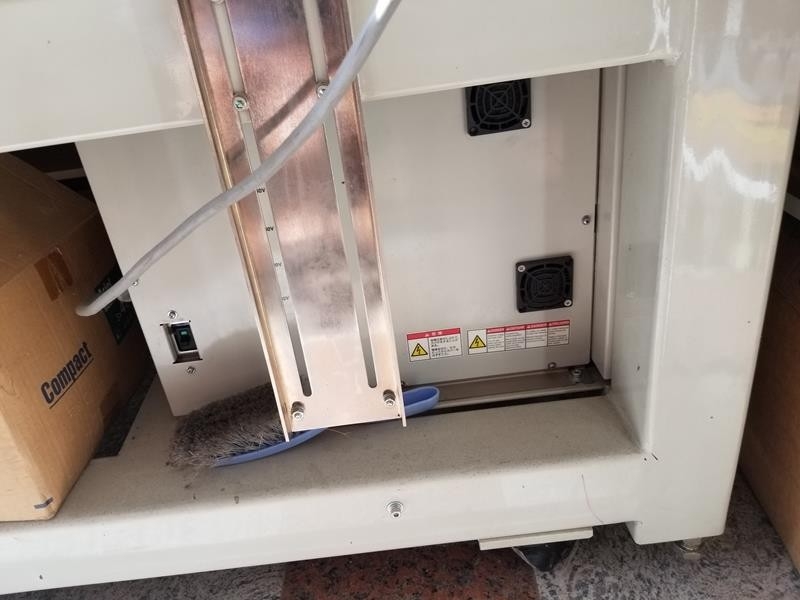

Power supply: Single phase 200 V, 220 V, 230 V, 240 V, 1.1 kVA;

Dimensions: 3040 x 1360 x 1750 mm;

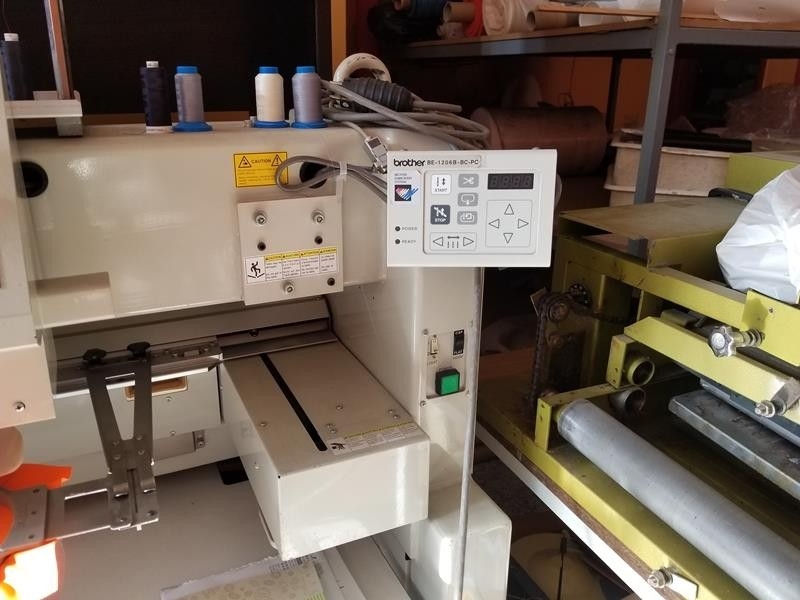

Type: BE=1206B-BC-PC;

Serial number:A6SM36582
