Plotter

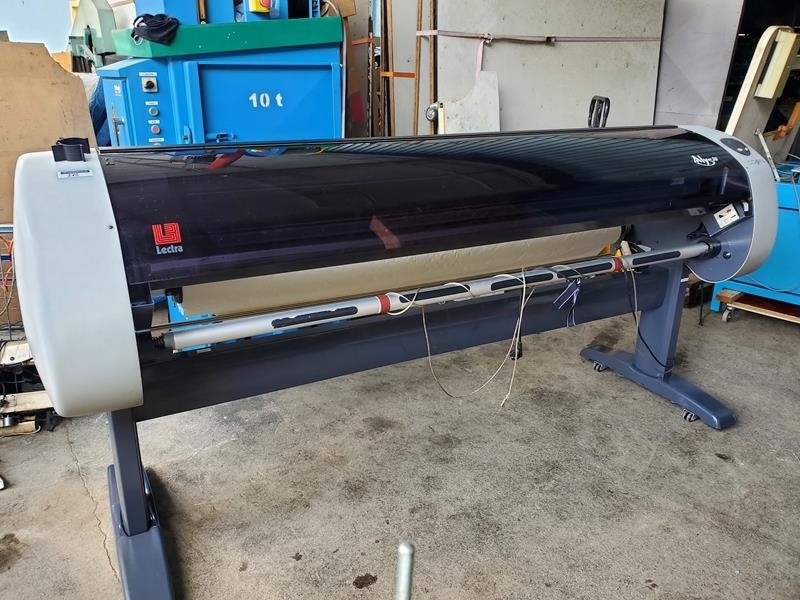

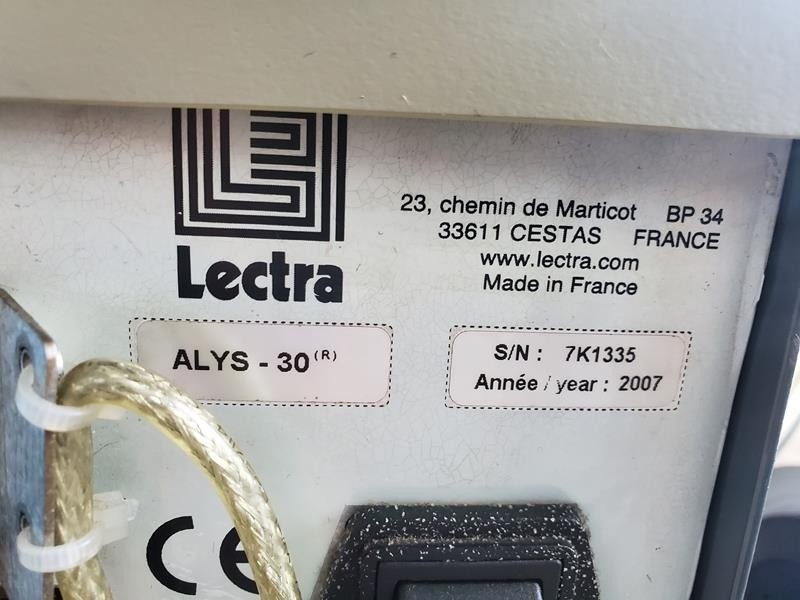

Lectra Alys-30 Plotter;

Maximum plot speed for width of 1.6 m: standard quality 30, high quality 17;

Dimensions: 2540 x 780 x 1195 mm;

Weight 1345b kg;

Effective plot width: 1828 mm;

Paper roll specification:

Max. weight roll : 40 kg;

Loading height 744 mm;

Max. diameter of rolls: 200 mm;

Ink refilling autonomy: Approx. 25 rolls of 200 m;

Power supply: 230 V, 50/60 Hz, 120 VA;

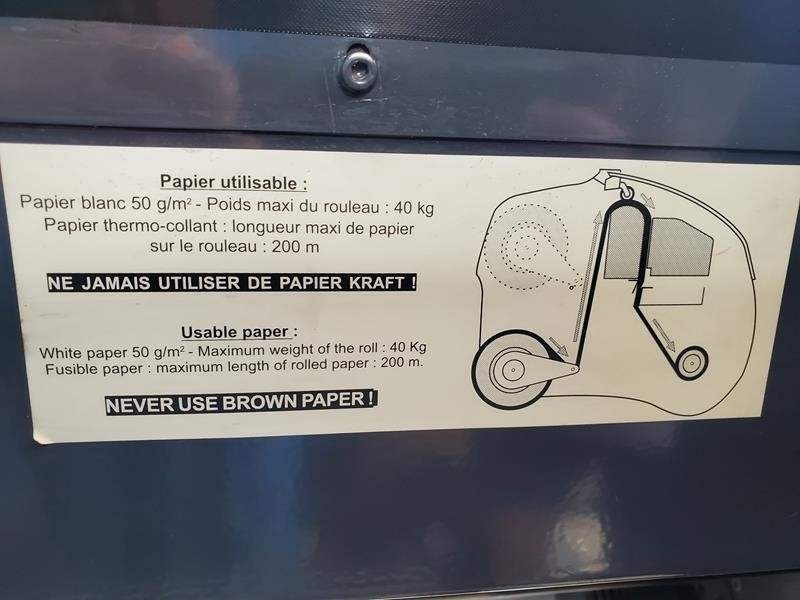

Never use brown paper!
